High Performance 3.5″ Threaded Extension Rings

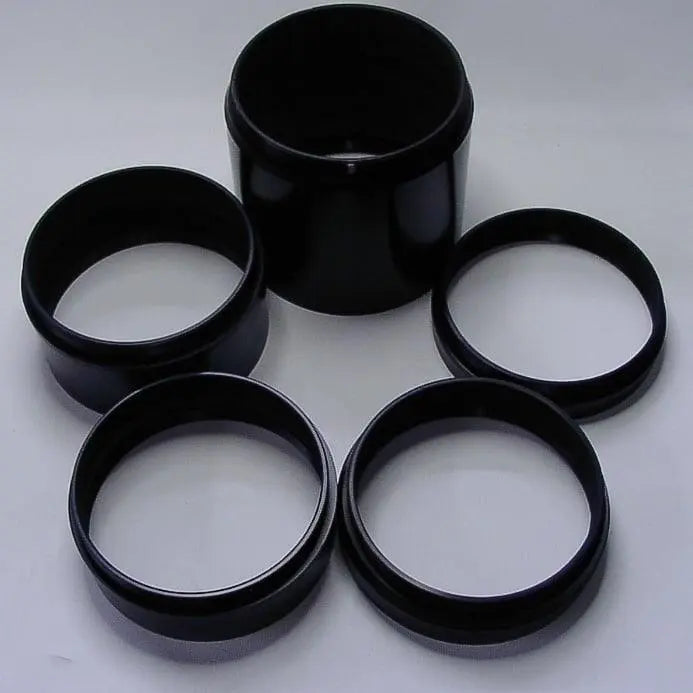

Rich Simons of Deep Sky Instruments and Optec have jointly developed a new, larger diameter standard spacer for large aperture telescopes: the Optec-DSI 3.5″ Telescope Spacers.  Like the Astro-Physics 2.7-inch spacer set, the Optec-DSI 3.5″ Telescope Spacers are available in a five different lengths.

The AP 2.7-inch thread has become an astronomy industry standard thanks to the tireless efforts of Roland and his team at Astro-Physics.  Optec has produced a complementary extension set and a few new adapters in an effort to extend this industry standard. However, there are times when the 2.5″ clear aperture of the AP2.7 spacers will not allow enough light through clipping the edge rays.

Optec-DSI 3.5-inch extension tubes feature female threads on one end with male threads on the opposite end
with knurled bases to help attach and detach these tubes.  The extensions can be combined and stacked. We believe our four and five piece sets will provide all the needed extension for fixed focal length telescopes with 1/4″ (6.35mm) increments using a minimum number of pieces.  See Manuals & Downloads tab for a table of the optimized spacer combinations.

All extensions and mounts are made from high strength 6061 aluminum alloy and black anodized.  Anti-reflection threading and internal baffles on the largest extension tube help minimize internal reflections.  All internal surfaces are painted and baked with a non-reflecting ultra-flat black paint.

• Spacer Lengths Available: 1/2″ (19891), 3/4″ (19892), 1″ (19893), 1-1/2″ (19894), and 3″ (19895)
• Clear Aperture: 3.25″ (82.5mm)
• Back-focus Usage: Variable (see TABLE)

Available Sets

4-Piece Set (19889)

• Includes: 1/2″, 3/4″, 1″, and 1-1/2″ spacers
• Possible spacer combinations:
  0.5″ through 3.25″ with 1/4-inch increments plus 3.75″ with all spacers combined.

5-piece set (19890)

• Includes:  1/2″, 3/4″, 1″, 1-1/2″, and 3″ spacers
• Possible spacer combinations:
  0.5″ through 6.25″ with 1/4-inch increments plus 6.75″ with all spacers combined.

Technical Specifications

DSI 3.5 Spacer Thread Specs

DSI 3.5 Extension – 1/2″ Length (19891)

Overall Height: 0.88″ (22.4mm)
Clear Aperture: 3.25″ (82.5mm)
Weight: 1.0 oz. (30 g)
Back-focus Usage: 0.50″ (12.7mm)

DSI 3.5 Extension – 3/4″ Length (19892)

Overall Height: 1.13″ (28.7mm)
Clear Aperture: 3.25″ (82.5mm)
Weight: 1.4 oz. (40 g)
Back-focus Usage: 0.75″ (19.1mm)

DSI 3.5 Extension – 1″ Length (19893)

Overall Height: 1.38″ (35.0mm)
Clear Aperture: 3.25″ (82.5mm)
Weight: 1.8 oz. (55 g)

DSI 3.5 Extension – 1-1/2″ Length (19894)

Overall Height: 1.87″ (47.5mm)
Clear Aperture: 3.25″ (82.5mm)
Weight: 2.4 oz. (70 g)
Back-focus Usage: 1.50″ (38.1mm)

DSI 3.5 Extension – 3″ Length (19895)

Overall Height: 3.38″ (85.8mm)
Clear Aperture: 3.25″ (82.5mm)
Weight: 8.2 oz. (230 g)
Back-focus Usage: 3.00″ (76.2mm)

DSI 3.5 Retaining Ring (19897)

Overall Height: 0.14″ (3.5mm)
Clear Aperture: 3.45″ (87mm)
Weight: 0.4 oz. (15 g)
Back-focus Usage: 0.10″ (2.5mm)
Anodize: Gold

In the Box

Depends on the choice.

4-piece set (19889)

3.5 Extension – 1/2″ Length (19891)
3.5 Extension – 3/4″ (19892)
3.5 Extension – 1″ Length (19893)
3.5 Extension – 1-1/2″ Length (19894)

5-piece set (19890)

3.5 Extension – 1/2″ Length (19891)
3.5 Extension – 3/4″ (19892)
3.5 Extension – 1″ Length (19893)
3.5 Extension – 1-1/2″ Length (19894)
3.5 Extension – 3″ Length (19895)

1/2″ individual extension (19891)

3.5 Extension – 1/2″ Length (19891)

3/4″ individual extension (19892)

3.5 Extension – 3/4″ (19892)

1″ individual extension (19893)

3.5 Extension – 1″ Length (19893)

1-1/2″ individual extension (19894)

3.5 Extension – 1-1/2″ Length (19894)

3″ individual extension (19895)

3.5 Extension – 3″ Length (19895)

Retaining Ring (19897)

3.5 Retaining Ring
